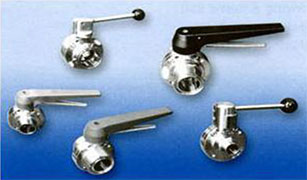

Leptir slavine za zavarivanje, sa 12 pozicija, u kvalitetu Č4580 i Č4574

Dimenzije: DIN / DN25 – DN100; SMS / Ø25 – Ø101,6

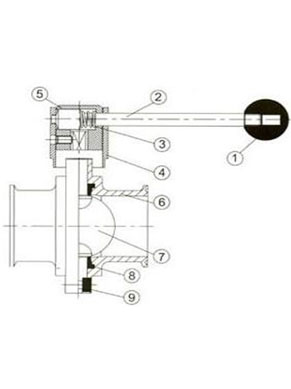

NO. NAME 1 KNOB 2 STEEL-BAR 3 SPRING ST.ST 4 ST.ST 5 HOLDER 6 BODY 7 DISC 8 EPDM RUBBER SEAT 9 SCREW BOLT

1,0" <1 m/kg 1,5" <1 m/kg 2,0" 1,3 m/kg 2,5" 1,5 m/kg 3,0" 2,0 m/kg 4,0" 3,1 m/kg

Torque for Full Open/Close
3A Clamp End With St.St Pull Handle 4 Position

Body: SS304.316.316L Material out from precision CNC Milling machined.

Body can be changeable. And Low torque. BS.SMS.DIN 3A weld and male/male end. Clamp end.

Disk: Out from full machined, high positioned. Ra less than o,6 μm. 9,5mm and 8 x 12mm, 12 x 12mm head for USA. And Europe required. Electric Polished and PFTE Coating can be Require.

Handle: Difference nylon re-force and stainless steel handle gripper, Pull, Press Type.

From 2 Position, Design for your width and beautiful choice.

GRIPPER HANDLE 12 POSITION		PULL HANDLE POSITION
	Nylon 6+glass fiber or stainless steel handle 304 gripper bar and notch plate easy to operate and secure locking. Precisie, beautiful design easy to put your logo marks. Can fit ⌀9,4 * 9,4 and ⌀12 * 8 or ⌀12 * 12, buterfly valves disk head. For USA and Europe, buterfly valves.	Full stainless steel 304 handle with phenol 4 position, full machining and polished for easy operation and safe lock. Fit ⌀9,4 * 9,4 and ⌀12 * 8 or ⌀12 * 12, Buterfly valve disc head. For USA and Europe type buterfly valves
