- The thread ends conform toASME B1.20.1 (NPT)
DIN 2999 & BS 21
ISO 228/1 & ISO 7/1
- Spring system on stem
- Fixed Springload
- Blow-out-proof stem
- PTFE Seat
- ISO 5211 Direct Mounting Pad
- Easy lock device
- Anti-static device
| Aplicable Standard | |
| Test and Inspection | API 598 |

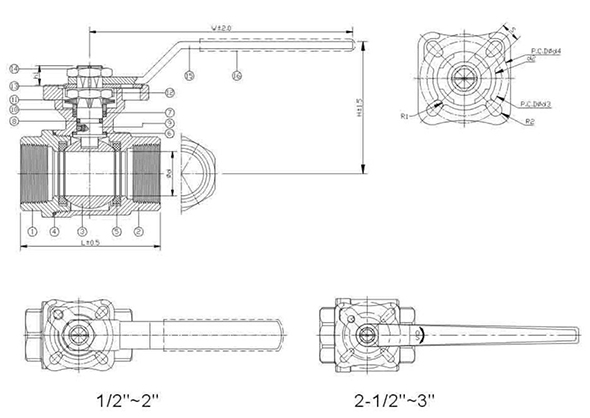

| ITEM | PARTS | MATERIAL |
| 1 | CAP | ASTM A351-CF8M 1.4408 |
| 2 | BODY | |
| 3 | BALL | |
| 4 | BODY SEAL | PTFE |
| 5 | BALL SEAT | PTFE / RTFE |
| 6 | THRUST WASHER | PTFE |
| 7 | PACKING | |
| 8 | O-RING | VITON |
| 9 | STEM | ASTM A276-316 |
| 10 | GLAND RING | AISI 304 |
| 11 | BELLEVILLE WASHER | |
| 12 | LOCK WASHER | |
| 13 | LOCK PAD | |
| 14 | STEM NUT | |
| 15 | HANDLE | |
| 16 | HANDLE SLEEVE | PVC |
 |
DN | d | L | H | W | S | h1 | d2 | d3 | d4 | R1 | R2 | Torque (N-m) |
| 15 | 15 | 58 | 63 | 120 | 9 | 8 | 31 | 36 | 42 | 2,75 | 2,75 | 5,5 | |
| 20 | 20 | 65,6 | 69 | 9 | 7,5 | ||||||||
| 25 | 25 | 78,7 | 76 | 148 | 11 | 10 | 35,5 | 42 | 50 | 2,75 | 3,5 | 11 | |
| 32 | 32 | 90 | 82 | 15 | |||||||||
| 40 | 38 | 105 | 99 | 178 | 14 | 14 | 56 | 50 | 70 | 3,5 | 4,5 | 20 | |
| 50 | 50 | 124 | 108 | 40 | |||||||||
| 65 | 63 | 146,2 | 123 | 325 | 17 | 20,5 | 76 | 70 | 102 | 4,5 | 5,5 | 60 | |
| 80 | 76 | 163,7 | 131,5 | 85 |
 |
NPS | d | L | H | W | S | h1 | d2 | d3 | d4 | R1 | R2 | Torque (in-lb) |
| 1/2" | 0,59 | 2,28 | 2,48 | 4,72 | 0,35 | 0,31 | 1,22 | 1,42 | 1,65 | 0,11 | 0,11 | 48,68 | |
| 3/4" | 079 | 2,58 | 2,72 | 0,35 | 66,38 | ||||||||
| 1" | 0,98 | 3,1 | 2,99 | 5,83 | 0,43 | 0,39 | 1,4 | 1,65 | 1,97 | 0,11 | 0,14 | 97,36 | |
| 1-1/4" | 1,26 | 3,54 | 3,23 | 132,76 | |||||||||
| 1-1/2" | 1,5 | 4,13 | 3,9 | 7,01 | 0,55 | 0,55 | 2,2 | 1,97 | 2,76 | 0,14 | 0,18 | 177,01 | |
| 2" | 1,97 | 4,88 | 4,25 | 354,03 | |||||||||
| 2-1/2" | 2,5 | 5,76 | 4,8 | 12,08 | 0,67 | 0,81 | 3 | 2,76 | 4,02 | 0,18 | 0,22 | 531,04 | |
| 3" | 2,99 | 6,44 | 5,18 | 752,31 |
