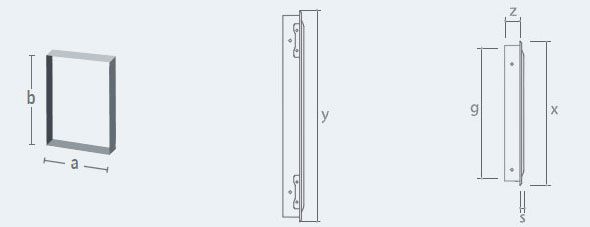

AX1 - SINGLE DOORS


ronda7
ITEM COUNTER HOLE EXTERNAL AND INTERNAL SIZE BOX

a(+1) b(+1) x y z s *g *gl
AX11_ 442 305 469 332 50 13 379 398 2
AX12_ 442 404 469 431 50 13 379 398 2
AX13_ 442 442 469 469 50 13 379 398 2
AX14_ 502 442 529 469 50 13 439 458 2
AX15_ 602 442 629 469 50 13 539 558 2
AX16_ 442 502 469 529 50 13 379 398 2
AX17_ 442 602 469 629 50 13 379 398 2
AX18_ 442 702 469 729 50 13 379 398 2

shema7

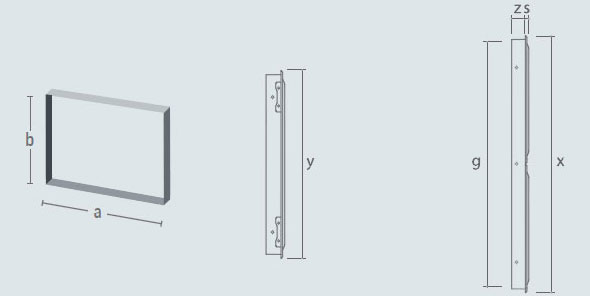

AL1 - DOUBLE DOORS
ronda8
ITEM COUNTER HOLE EXTERNAL AND INTERNAL SIZE BOX

a(+1) b(+1) x y z s *g *gl
AL16_ 878 502 905 529 50 13 796 834 2
AL17_ 878 602 905 629 50 13 796 834 2
AL18_ 878 702 905 729 50 13 796 834 2
shema8

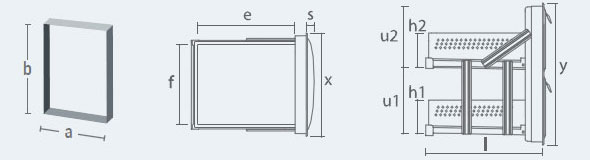

AMV1 - GLASS-FRONTED DRAWER UNITS
ronda9
ITEM COUNTER HOLE EXTERNAL AND INTERNAL SIZE BOX

a(+1) b(+1) x y e f h1 h2 l u1 u2 s
AMV13 442 602 469 629 459 361 145 145 520 242 242 38 1
AMV13C 442 602 469 629 397 361 145 145 458 242 242 38 1
shema9
