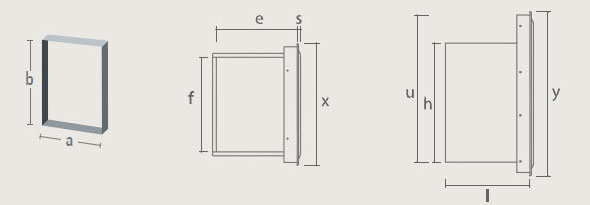

AU1 - WASTE CONTAINERS

ronda10
ITEM COUNTER HOLE EXTERNAL AND INTERNAL SIZE BOX

a(+1) b(+1) x y e f h l u s
AU11 442 502 469 529 291 361 328 323 439 13 1
AU12 442 602 469 629 291 361 454 323 539 13 1
shema10

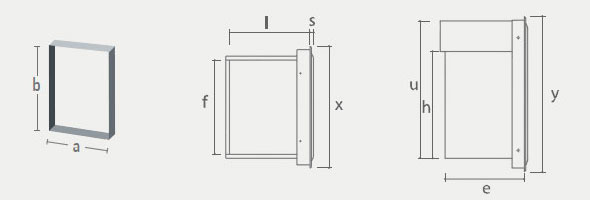

AU1 - WASTE CONTAINERS WITH STEAM PROTECTION HOOD

ronda11
ITEM COUNTER HOLE EXTERNAL AND INTERNAL SIZE BOX

a(+1) b(+1) x y e f h l u s
AU13 442 502 469 529 291 361 328 343 439 13 1
AU14 442 602 469 629 291 361 454 343 439 13 1
shema11

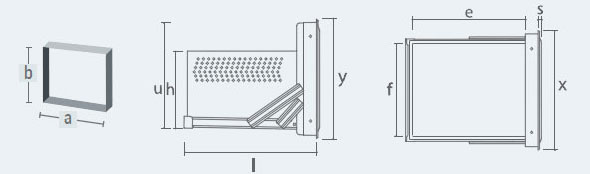

AK1 - INDIVIDUAL DRAWERS
ronda12
ITEM COUNTER HOLE EXTERNAL AND INTERNAL SIZE BOX

a(+1) b(+1) x y e f h l u s
AK11 442 255 469 282 459 361 145 520 192 13 1
AK11C 442 255 469 282 397 361 145 458 192 13 1
AK12 442 305 469 332 459 361 145 520 242 13 1
AK12C 442 305 469 332 397 361 145 458 242 13 1
AK13 442 404 469 431 459 361 290 520 341 13 1
AK13C 442 404 469 431 397 361 290 458 341 13 1
AK14 442 442 469 469 459 361 290 520 379 13 1
AK14C 442 442 469 469 397 361 290 458 379 13 1


shema12
