Filteri tip "Y"
Features
The thread ends conform to
- ASME B1.20.1 (NPT)
- DIN 2999 & BS 21
- ISO 228/1 & ISO 7/1
Investment casting
Features
The thread ends conform to
- ASME B1.20.1 (NPT)
- DIN 2999 & BS 21
- ISO 228/1 & ISO 7/1
Investment casting
Aplicable Standard | |
Test and Inspection | API 598 |
ITEM | PARTS | MATERIAL |
1 | BODY | ASTM A351-CF8M 1.4408 |
2 | SCREEN | SUS304 |
3 | GASKET | PTFE |
4 | CAP | ASTM A351-CF8M |
5 | STOPPER | SUS304 |

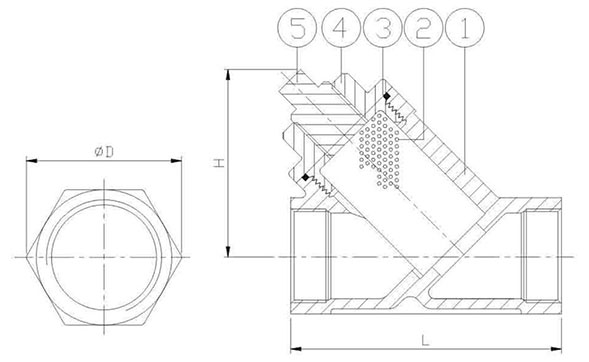

DN | L | H | D | Weight (kg) |
8 | 65 | 45 | 31 | 0,26 |
10 | 65 | 45 | 31 | 0,23 |
15 | 65 | 45 | 31 | 0,24 |
20 | 80 | 53 | 36 | 0,36 |
25 | 80 | 65 | 45 | 0,69 |
32 | 105 | 70 | 50 | 0,86 |
40 | 120 | 80 | 59 | 1,021 |
50 | 140 | 103 | 75 | 1,88 |
65 | 190 | 102,7 | 95,4 | 5,14 |
80 | 140 | 141,9 | 111,5 | 7,26 |
NPS | L | H | D | Weight (lb) |
1/4" | 2,56 | 1,77 | 1,22 | 0,57 |
3/8" | 2,56 | 1,77 | 1,22 | 0,51 |
1/2" | 2,56 | 1,77 | 1,22 | 0,53 |
3/4" | 3,15 | 2,09 | 1,42 | 0,79 |
1" | 3,15 | 2,56 | 1,77 | 1,52 |
1-1/4" | 4,13 | 2,76 | 1,97 | 1,9 |
1-1/2" | 4,72 | 3,15 | 2,32 | 2,25 |
2" | 5,51 | 4,06 | 2,95 | 4,14 |
2-1/2" | 7,48 | 4,04 | 3,76 | 11,33 |
3" | 5,51 | 5,59 | 4,39 | 16,01 |
